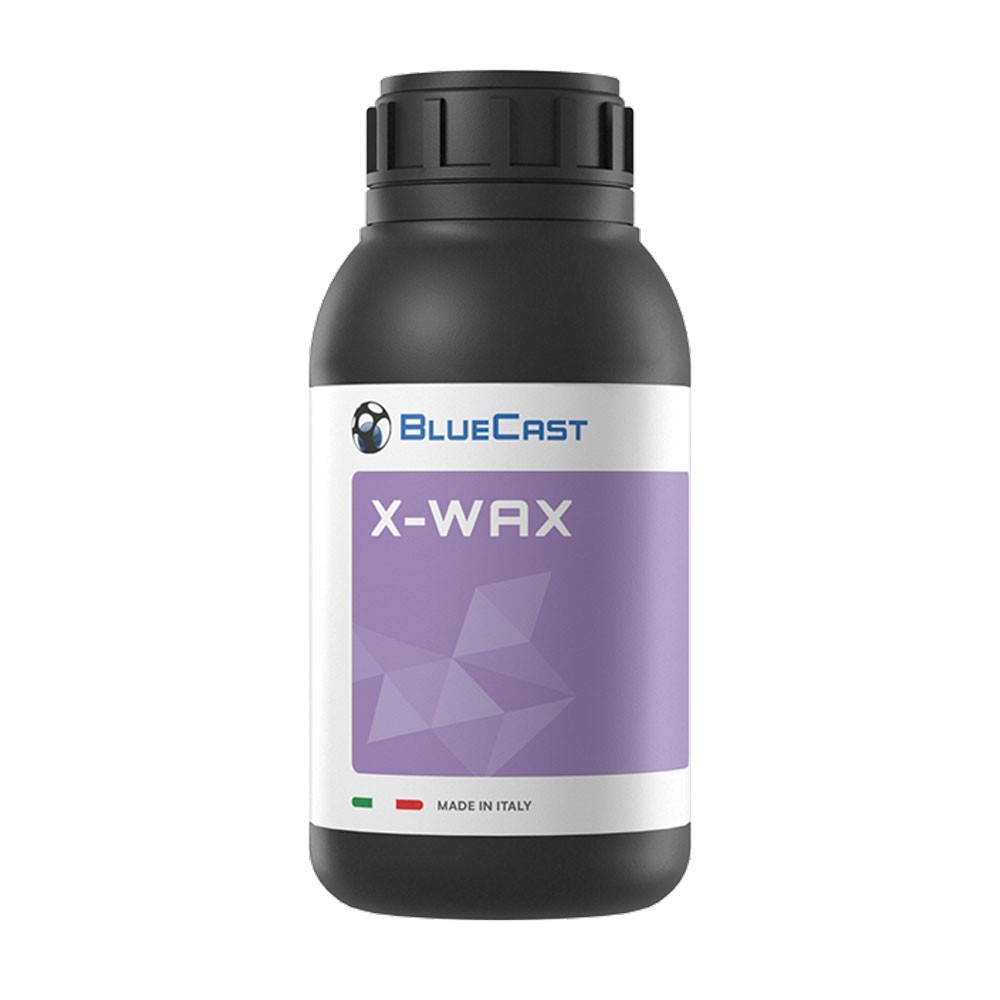

BlueCast X-WAX Resin

The Real Wax Breakthrough for 3D Jewelry Printing

Discover the Future of Castable Resin with BlueCast X-WAX

When precision, castability, and affordability meet in one material, the result is nothing short of revolutionary. BlueCast X-WAX Resin is exactly that—a groundbreaking castable resin engineered for traditional and standard jewelry designs. Whether you're creating solid men's rings or delicate celebration pieces, X-WAX delivers unmatched reliability and a wax-like experience optimized for LCD and DLP 3D printers.

With its 80% real wax content and extreme castability, X-WAX has become the go-to choice for jewelers seeking a professional-grade resin that works with even the most affordable 3D printers. Say goodbye to costly wax printers and hello to flawless results at a fraction of the cost.

Suggested Applications of BlueCast X-WAX Resin

BlueCast X-WAX is tailored for:

• Traditional and standard jewelry designs
• Solid parts, such as bold signet rings and custom heavy bands
• Men’s rings and high-strength components
• Classic jewelry models made with castable resin
• 3D-printed rings and bracelets for direct investment casting

Whether you're a jeweler working on timeless designs or producing custom one-off models, X-WAX is your perfect companion in the workshop.

BlueCast X-WAX Resin: A Real Innovation, Not Just a Claim

Unlike traditional castable resins that only mimic wax, X-WAX is the world’s first castable resin made with over 80% real wax content. This isn’t a gimmick—it’s a transformative leap in resin formulation. With X-WAX, professionals can achieve results previously possible only with expensive wax injection systems or wax-based 3D printers.

Why Is X-WAX So Innovative?

• Real Wax Formulation: Over 80% wax content
• No UV Post-Curing Needed: Saves time and complexity
• Smooth Burnout: Leaves no ash, ensuring clean casting
• Precise Dimensional Stability: No shrinkage or distortion
• Wide Compatibility: LCD and DLP printers, including budget models under $300

Key Advantages of X-WAX Castable Resin

1. Affordable Entry Point: Works with printers under $300
2. Low Material Cost: High-performance at a low price
3. Fast Printing: Up to 5× faster than traditional wax printers
4. Flawless Surface Finish: Requires less post-processing
5. Exceptional Durability: Better than conventional wax prints
6. Flexible Burnout Options: Supports fast and slow burnout cycles
7. Reduced Metal Loss: Less material waste during casting
8. Effortless Cleanup: No glycerin or boiling required
9. Eco-Friendly: Made with 80% wax and no toxic components
10. Universal Compatibility: Works with most investments

These benefits make X-WAX the ultimate upgrade for any jewelry production environment—craftsmanship, made simpler.

Compatibility and Printing Requirements

Printer Compatibility:

• Fully compatible with LCD and DLP 3D printers
• Supports 405nm and 385nm UV light sources

UV Post-Curing:

• Not Required – prints are ready after alcohol cleaning and air drying

Recommended Settings for Monochrome LCD Printers:

• Layer Height: 0.03 mm
• Bottom Layers: 10 layers
• Bottom Exposure: 30 sec
• Layer Exposure: 8.5 sec
• Rest Time: 1 sec
• Bottom Speed: 50 mm/min
• Normal Speed: 150 mm/min

How to Prepare and Use BlueCast X-WAX

Before Printing:

• Warm the resin bottle to 30–40°C for 5 minutes
• Shake well for 1 minute to ensure even mixing
• Use PFA film (≤127μm) or ACF film for tilt-vat printers
• Maintain ambient temperature between 25°C and 35°C
• Use a heated resin tank or chamber if available

Post-Processing (No UV Required):

1. Wash in IPA alcohol for 5 minutes
2. Blow dry with compressed air
3. Second IPA wash for 3 minutes
4. Final air dry
5. Let prints rest for 15–20 minutes before treeing

Tip: For stubborn residue, use ultrasonic cleaning at 40°C with IPA for 10 minutes.

Suggested Casting Investments

Best casting results were achieved with:

Plasticast, Optima Prestige, SRS Classic

• Ratio: 37:100 (water:plaster)

X-Vest v2

• Ratio: 38:100
• Let flask rest for 2 hours before burnout

Burnout Cycles

Recommended Cycle:

• Ramp: 0°C → 150°C (Hold 2 hrs)
• Ramp: 150°C → 700°C (Hold 3 hrs)
• Cool to casting temp

Standard Cycle:

• Ramp: 0°C → 150°C (Hold 2 hrs)
• Ramp: 150°C → 450°C (Hold 2 hrs)
• Ramp: 450°C → 700°C (Hold 3 hrs)
• Cool to casting temp

Fast Cycle:

• Ramp: 0°C → 720°C (Hold 2 hrs)
• Cool to casting temp

These cycles ensure clean burnout, zero ash, and no expansion—ideal for high-precision lost-wax casting.

Real Liquid Wax for 3D Printing

Thanks to its unique chemistry, BlueCast X-WAX behaves like liquid wax for LCD and DLP 3D printers, offering a casting experience as clean and efficient as traditional methods, without the hassle and expense.

Key Properties at a Glance:

• Real investment casting resin
• Injection wax-like burnout behavior
• No shrinkage or weight loss over time
• Non-toxic and environmentally safe
• Compatible with any casting investment and burnout cycle

BlueCast X-WAX: Redefining Jewelry 3D Printing

With BlueCast X-WAX, the jewelry industry takes a massive leap toward democratized high-precision casting. It opens up wax-based jewelry production to a much wider audience—allowing jewelers, designers, and small studios to deliver professional-quality results with minimal investment.

From men's rings and traditional designs to robust castable prototypes, BlueCast X-WAX is the gold standard in castable resins for jewelry.
