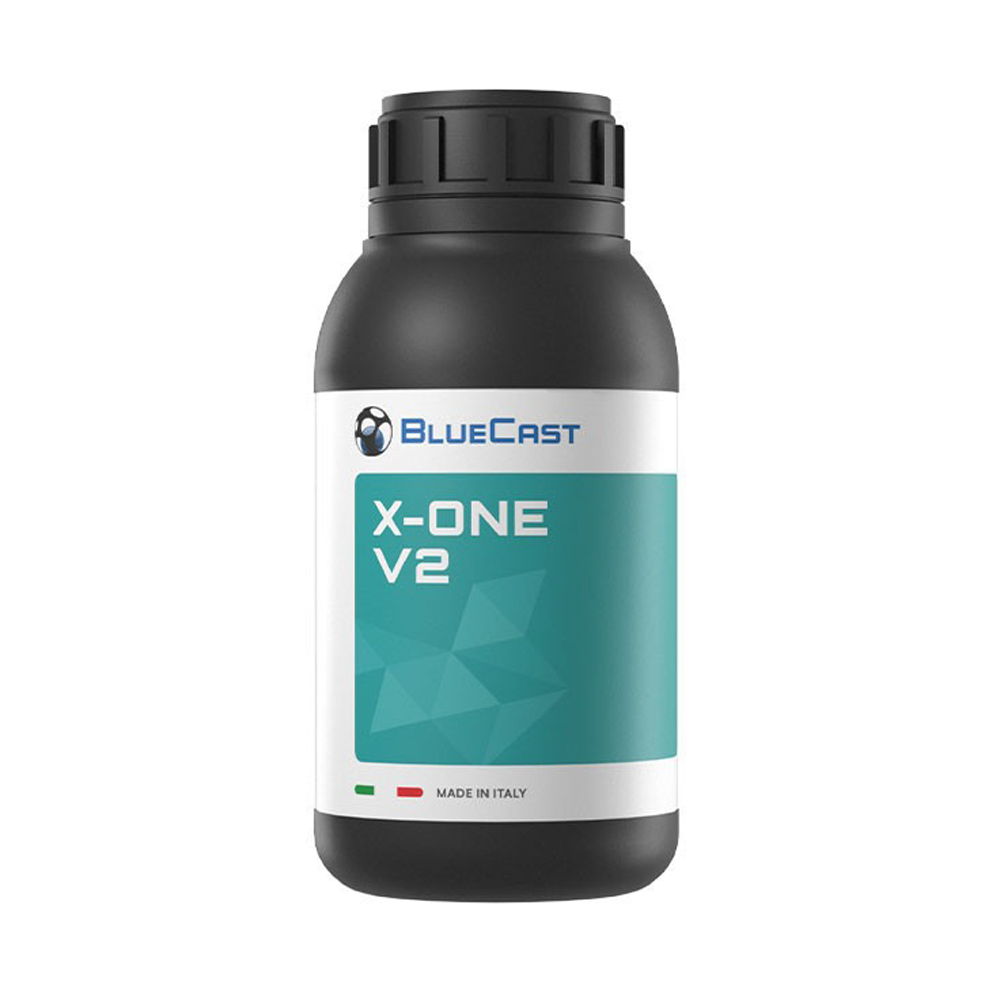

BLUECAST X-ONE V2

BLUECAST X-ONE V2 Resin – The Ultimate Castable Resin for Jewelry and Dental Applications

One Resin, Endless Possibilities – Uncompromising Castability

Unlock next-level casting precision and reliability with BLUECAST X-ONE V2 Resin, the most advanced castable resin formulated by BlueCast for DLP and monochromatic LCD 3D printers. Engineered for professional jewelry casting, dental laboratories, and high-precision industrial design, this resin offers unmatched dimensional stability, zero shrinkage, and exceptional surface detail—without the need for UV post-curing.

Why Choose BlueCast X-One V2 Resin

• BlueCast X-One V2 delivers perfect casting with any investment material. Whether you're using traditional or modern investments, this resin guarantees flawless burnout and clean, accurate results.
• With zero shrinkage, you get extreme dimensional stability—ideal for producing precision micro-detail work and complex geometries.
• UV post-curing is not required, saving time and simplifying post-processing without compromising quality.
• It is specifically designed for solid jewelry pieces and men’s rings, ensuring excellent strength, smooth surfaces, and readability of fine engravings.
• The resin is fully compatible with ultra-fast burnout cycles, completing burnout in just two hours at 700°C.
• It offers superior printability, especially with DLP and modern 12K LCD printers, resulting in reduced bleeding and high-detail resolution.
• This formulation is odorless and free of toxic or carcinogenic materials, ensuring a safe working environment even in small studios.

BlueCast X-One V2 – Engineered for Professional Use

This resin is based on a proprietary low-temperature melting polymer developed by BlueCast to deliver high-quality casting results with standard burnout cycles. Whether you're casting jewelry, dental parts, or fine engravings, the X-One V2 consistently produces sharp lettering and smooth surfaces.

Compared to the original version (V1), X-One V2 offers better print accuracy, improved resolution for high-detail printers, enhanced DLP compatibility, greater stability at lower temperatures, and superior meltability for micro-features.

Important Guidelines Before Printing

• Before printing, heat the resin to 25–40°C to ensure proper flow and print performance. Below 18°C, the resin will begin to solidify. The optimal temperature range is 20–30°C.
• Shake the bottle thoroughly for one minute, then allow the resin to settle in the tank for five minutes before beginning the print.
• Always filter the resin after every print and never leave it inside the resin tank. Store the filtered resin in its original container to prevent contamination.
• Ensure adequate support during slicing. Avoid contact points smaller than 0.4 mm and support critical areas like the shank of rings properly. Sprues can be modeled within the design to act as strong main supports.
• For best results, use HD FEP or No-FEP (PFA) films when printing fine or highly detailed parts.
• Neglecting to heat or filter the resin before printing may result in print failures.

Post-Printing Cleaning and Handling

• X-One V2 resin patterns are softer than standard BlueCast formulations and require gentle handling, especially for filigree or prong designs.
• Clean printed parts using 91% to 99% ethyl alcohol. If using an ultrasonic cleaner, perform a 5-minute cleaning cycle with the heat function turned off.
• For manual cleaning, immerse parts in alcohol for approximately 10 minutes. When using IPA instead of ethanol, shorten cleaning time accordingly.
• After washing, dry parts using compressed air or a hairdryer. The resin will change color from dark gray to a light gray or white hue, indicating proper cleaning.
• To improve casting quality, spray parts with fresh alcohol and dry again before proceeding to investment.
• The whitening speed depends on alcohol purity and exhaustion. Allow alcohol to fully evaporate before investing.
• Post-curing is not required but may accelerate alcohol evaporation and make the parts slightly more rigid.

Ultra-Fast Burnout Procedure

• BlueCast X-One V2 supports ultra-fast burnout cycles of only 2 hours at 700°C.
• After flask investment, let the mold rest for 3 hours before initiating burnout. Ramp to 700°C and hold for 60 to 90 minutes.
• Then reduce the temperature to your casting setting and hold for 60 minutes before proceeding to pour.
• It also performs well with standard or low-temperature burnout cycles. Though it fully burns at 650°C, a final stage at 700°C is recommended for best results.

Key Specifications and Highlights

Compatible with DLP and monochrome LCD 3D printers
Printability: Excellent
Castability: Excellent
UV Post-curing: Not required
Shrinkage: Zero
Stability: High dimensional accuracy
Application: Jewelry casting, dental models, men’s rings, engravings
Burnout: Ultra-fast and standard burnout compatibility
Safety: Odorless and non-toxic formulation

The Perfect Resin for Professionals

Whether you’re a jewelry manufacturer, a boutique designer, or a dental technician, BlueCast X-One V2 gives you the confidence to cast even the most demanding parts with ease. Achieve sharp engravings, smooth surfaces, and repeatable accuracy across a wide range of models and patterns.

From simple rings to complex micropavé settings, X-One V2 adapts to your workflow and guarantees professional-grade results, every time.
