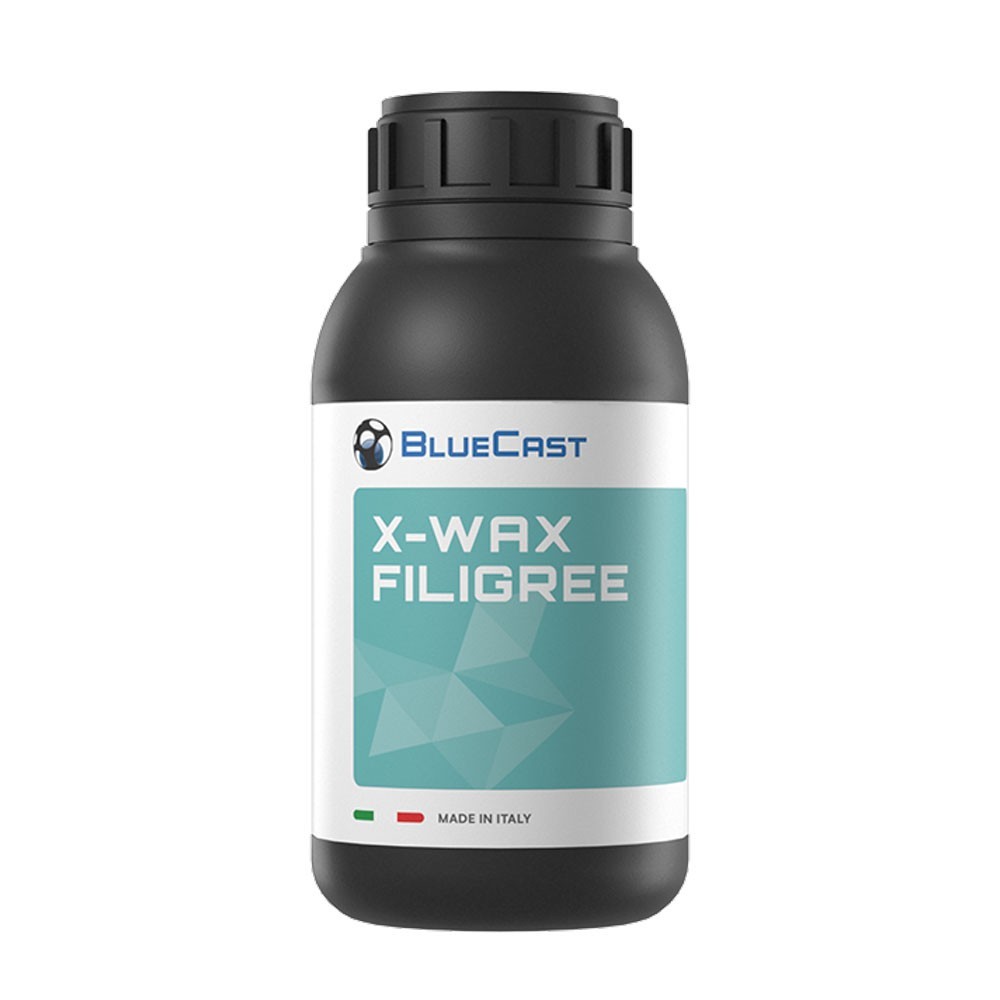

BlueCast X-WAX FILIGREE Resin
In the world of high-end jewelry manufacturing, precision, delicacy, and castability are paramount—especially for filigree and traditional Arabic designs. Enter BlueCast X-WAX FILIGREE Resin, an innovative castable 3D printing resin specifically engineered to meet the unique demands of intricate and lightweight jewelry models. With exceptional printability, sharp detailing, and a high content of real wax, this resin redefines what's possible in resin-based jewelry production.
Whether you're producing complex filigree earrings, delicate pendant frameworks, or ornate traditional Arabic rings, X-WAX FILIGREE is your ideal partner in transforming digital artistry into precise, castable masterpieces.
Suggested Applications of BlueCast X-WAX FILIGREE Resin
- Intricate Filigree designs
- Arabic jewelry patterns with delicate motifs
- Classic lightweight jewelry items like earrings, pendants, and thin rings
- High-precision micro-casting of thin-walled models
- 3D printed jewelry requiring extreme detail and dimensional stability
Unparalleled Printability and Castability
| Feature |
Rating |
| Printability |
★★★★★ (EXTREME) |
| Castability |
★★★★☆ (VERY GOOD) |
| UV Post-Curing |
MANDATORY |
BlueCast X-WAX FILIGREE is designed for LCD and DLP 3D printers and is optimized for ultra-fine detail. It excels where standard castable resins struggle—particularly in thin, hollow, or open designs that are common in filigree and Middle Eastern jewelry styles.
What Makes X-WAX FILIGREE Special?
- Real Wax-Based Resin: Contains a high percentage of real wax for improved handling, smoother surface finish, and cleaner burnout.
- Exceptional Print Accuracy: Print the most fragile, thin-walled geometries without cracking, warping, or bleeding.
- Strong Yet Flexible: Maintains dimensional stability and structural integrity during printing and post-curing.
- Metal-Saving Finishes: The smooth surface of cured parts means less polishing and finer final results.
Technical Specifications
| Property |
Value |
| Tensile Strength |
13 MPa |
| Modulus of Elasticity |
210 MPa |
| Elongation |
15% |
| Temp. at 5% Weight Loss |
198°C |
| TGA Test |
0.015 |
These properties ensure that the resin can hold its shape through both the printing and casting process, which is critical when working with microstructures.
Key Features at a Glance
- Perfect for Delicate Filigree Patterns
- High Strength with Minimal Support Requirements
- Effortless Support Removal without Surface Damage
- Crisp, Bleed-Free Precision Details
- Works with All Casting Investments and Cycles
- Superior Surface Quality and Polish-Free Finish
- Low Equipment Investment – No Need for Wax Printers
- Printing Up to 5x Faster than Traditional Wax
- Optimized for Thin-Walled Jewelry Printing
- Easy and Quick Post-Processing Workflow
Printing Setup and Post-Processing Guidelines
Recommended Print Settings (Monochrome LCD Printers):
- Layer Height: 0.03 mm
- Bottom Layers: 10
- Bottom Exposure: 30 s
- Layer Exposure: 8.5 s
- Rest Time: 1 s
- Layer Speed: 150 mm/min
- Bottom Speed: 50 mm/min
Pre-Print Resin Preparation:
- Warm bottle to 30–40°C for 5 minutes (not exceeding 60°C)
- Shake vigorously for 1 minute
- Use PFA or ACF film for high resolution
- Keep printer chamber temp between 25–35°C
- For best results, use a heated vat or enclosure
Post-Print Cleanup:
- Wash in IPA for 3 minutes
- Blow dry with cold compressed air
- Second IPA wash for 2 minutes
- Dry again
- UV Cure for 10+ minutes depending on lamp power
- Rest prints for 15–20 minutes before assembling casting trees
Burnout Cycles for Optimal Casting Results
Recommended Burnout Cycle
- Ramp to 150°C → Hold 2h
- Ramp to 730°C → Hold 3h
- Cool to casting temp
Standard Burnout Cycle
- 0°C to 150°C → Hold 2h
- 150°C to 450°C → Hold 2h
- 450°C to 730°C → Hold 3h
- Cool to casting temp
Fast Burnout Cycle
- 0°C to 750°C → Hold 2h
- Cool to casting temp
Suggested Investments
- Plasticast, Optima Prestige, SRS Classic (37:100 water/plaster ratio)
- X-Vest v2 (38:100 ratio)
- Rest flask for 2 hours before burnout
BlueCast X-WAX FILIGREE vs. Standard X-WAX
While X-WAX Standard offers the best castability on the market thanks to its 80% real wax content, X-WAX FILIGREE is optimized for printing performance, dimensional accuracy, and handling of fine geometries. Together, they complement each other in any professional jeweler’s resin portfolio.
When to Choose X-WAX FILIGREE
Use X-WAX FILIGREE when:
- Printing ultra-thin rings, delicate Arabic designs, or micro settings
- You need faster printing, better support handling, and minimal post-processing
- You are using LCD or DLP 3D printers
- You need reliable print quality on delicate, thin-walled models with smooth surfaces
Conclusion: A Game-Changer for Jewelry Designers
BlueCast X-WAX FILIGREE Resin brings filigree jewelry production into the 21st century by marrying cutting-edge 3D printing technology with the traditions of fine metal casting. Its exceptional printability, fine resolution, and compatibility with standard investment and burnout cycles make it the ideal solution for jewelers seeking reliability, precision, and efficiency.
From initial design to final casting, X-WAX FILIGREE streamlines your workflow, improves model quality, and enhances the creative freedom of jewelry artists and manufacturers alike. With this resin, printing and casting intricate filigree jewelry has never been this easy or accurate.
