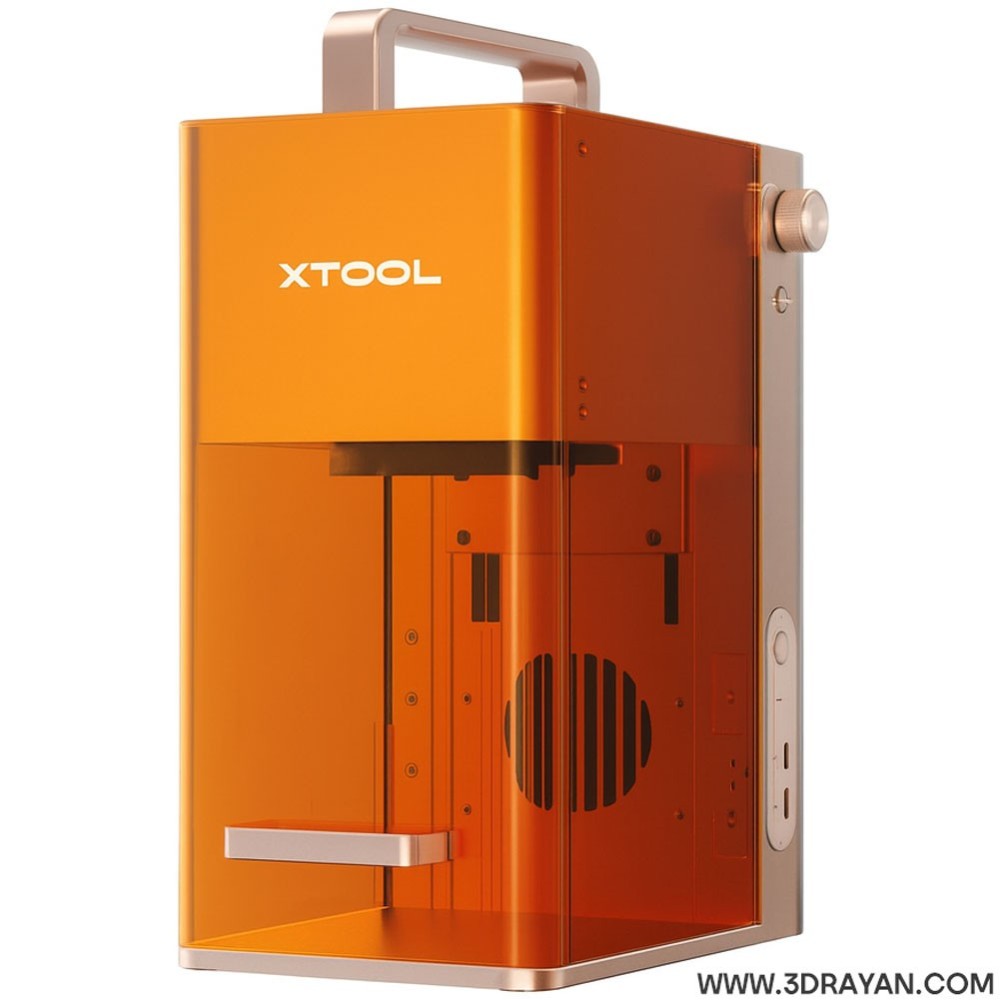

Introduction to the xTool F2 Laser Engraver
The xTool F2 Laser Engraver represents a new generation of portable laser systems that redefine precision and productivity for professionals, creators, and small workshops. Offered by 3DRAYAN.COM, the official distributor of XTOOL in the United Arab Emirates, this model combines industrial-grade performance with a compact, mobile design. Equipped with a 15 W diode laser (455 nm) and a 5 W infrared IR laser (1064 nm), the F2 delivers true dual-wavelength capability. This enables it to engrave and cut a wide range of materials—from wood and leather to stainless steel and gold—without switching tools. By integrating both light sources, the F2 eliminates the limitations common in single-wavelength machines, allowing operators to alternate seamlessly between organic and metallic materials for greater workflow flexibility.
Dual-Laser Source Technology Explained
The F2’s dual-laser configuration employs two independent optical engines, each optimized for a specific material response curve. The blue-diode 455 nm beam exhibits higher photon absorption in non-metallic, darker materials such as wood, paper, or leather, while the infrared 1064 nm laser couples efficiently with reflective and conductive surfaces like gold, silver, and stainless steel. In practice, this means users can mark a jewelry ring or engrave serial codes on metal casings using the IR beam, then switch instantly to the diode source for cutting organic substrates. The internal optical path alignment ensures consistent beam collimation and energy density, giving professional-level surface uniformity and minimizing heat-affected zones even at high output power.
Upgraded Laser Power for Higher Throughput
In this upgraded model, the F2’s laser output has been enhanced significantly—nearly 50 percent higher than earlier portable units. This increased optical power reduces the number of passes required for 3D embossing or deep engraving, dramatically shortening production cycles. For example, a wooden plaque that previously required five passes to achieve 1 mm depth can now be completed in only two, maintaining the same dimensional fidelity. This improvement results from a refined power-delivery module, improved cooling efficiency, and higher laser-diode conversion rates. Such enhancements make the F2 suitable not only for artistic customization but also for commercial short-run manufacturing.
50 MP Integrated Smart Camera System
One of the xTool F2’s defining features is its integrated 50-megapixel camera, designed to deliver full-workspace visualization and alignment accuracy within 0.1 mm. The system captures ultra-high-resolution images of the engraving bed and employs AI-based object-recognition algorithms to identify the workpiece edges and automatically center the design. This eliminates trial-and-error alignment, reducing both material waste and setup time. In conjunction with the slide-extension preview, the camera stitches multiple frames using image-stitching computation, creating a continuous top-view representation of the entire workspace for precise positioning of complex layouts.
Extended Workspace and Visualization
By integrating the Slide Extension Module, users can expand the effective engraving area from 115 × 115 mm to 400 × 115 mm. The software automatically merges the bed and extension into a unified virtual canvas, enabling real-time placement preview. This function is especially valuable for large-format signage, multi-panel projects, or batch engraving workflows. Operators can drag and drop multiple vector or bitmap designs across the extended field with confidence that spatial alignment will remain exact. The seamless visualization ensures that what appears on the digital interface mirrors the actual physical layout, removing guesswork from material positioning.
True 6000 mm/s Motion Performance
Unlike many portable engravers whose claimed speed figures are theoretical, the xTool F2 delivers a genuine 6000 mm/s travel speed. This performance stems from a CoreXY kinematic architecture paired with precision step-servo motors and a high-rigidity frame. The CoreXY mechanism minimizes inertial vibration and allows coordinated linear motion in both axes, producing cleaner edges even at top velocity. In benchmark tests, the F2 completed a complex 10 cm logo engraving in under 30 seconds—up to three times faster than typical portable models—while maintaining consistent beam spot density and line continuity across the surface.
Ultra-Fine Line Resolution and Surface Quality
The F2’s optical engine generates an exceptionally small laser spot size of 0.08 × 0.06 mm for the diode and 0.03 × 0.03 mm for the IR laser. These micron-level beams create ultra-fine linework with sharp edges and high contrast, ideal for photo-realistic engravings. Under magnification, lines remain uniform without thermal bleeding or over-burn. The device employs F-Theta flat-field lenses that maintain focus across the entire working area, ensuring energy uniformity from corner to corner. This precision is critical for rendering delicate textures such as fur, textiles, or intricate geometric patterns with remarkable clarity.
Intelligent Focusing System: Auto + Manual Dual Mode
Accurate focus is fundamental to engraving consistency. The F2 incorporates a dual-mode focusing system featuring both automatic focus and two-dot manual alignment. In automatic mode, a distance sensor measures the offset between the laser head and material surface, adjusting the Z-axis in real time. For materials with irregular geometry, the operator can use the two-dot method: when the two projected focus points converge into one, the optimal focal distance is achieved. This hybrid focusing solution ensures both convenience and control—an essential advantage for mixed-material production environments.
Smart Software Ecosystem and AI Integration
The F2 supports xTool Creative Space, xTool Studio, and Atomm software platforms, all compatible with Windows and macOS. These applications accept common design formats—SVG, DXF, JPG, PNG, BMP—and provide live-preview synchronization with the onboard camera. Through AI Make compatibility, the system can automatically detect object orientation, estimate engraving boundaries, and optimize path planning for minimal travel time. This intelligent automation simplifies multi-object jobs and reduces human error, empowering designers to focus on creativity rather than setup complexity.
Connectivity and Plug-and-Play Operation
The F2 offers versatile connection options, including Wi-Fi, USB, and IP network interfaces, allowing direct data transfer from PCs, tablets, or shared local servers. Its pre-assembled construction means no mechanical assembly is required—simply connect the power supply and begin engraving. The lightweight chassis enables mobility between workstations, pop-up stores, or exhibition booths. For businesses providing on-site personalization—such as jewelry retailers or event kiosks—this plug-and-play simplicity translates into immediate revenue opportunities without lengthy setup procedures.
Broad Material Compatibility
Thanks to its dual-source configuration, the xTool F2 handles a wide spectrum of materials. The 15 W diode laser effectively cuts basswood up to 15 mm and opaque acrylic up to 12 mm in multiple passes, while the 5 W IR laser excels in marking plastics and metals including stainless steel, titanium, gold, silver, and platinum. Each wavelength interacts differently with the material’s absorption coefficient, enabling precise thermal control. For instance, the infrared beam can black-mark anodized aluminum without removing the oxide layer—a process highly valued in electronics and jewelry engraving.
Rotary Engraving and 4× Workspace Expansion
The optional rotary module expands creative potential by enabling 360-degree engraving on cylindrical or spherical objects up to 120 mm in diameter—ideal for mugs, bottles, ornaments, or rings. Coupled with the slide-extension system, the workspace expands four-fold for batch processing or large projects. The combined system enhances throughput and reduces idle time between jobs, making the F2 suitable for both prototyping and small-scale mass production.
Compact Industrial-Grade Design
Weighing only 4.8 kg and measuring 175 × 237 × 334 mm, the F2 is engineered for portability without compromising rigidity. Its aluminum unibody chassis offers high torsional strength, while the anodized coating resists wear and oxidation. The internal cable routing and integrated cooling maintain thermal stability during prolonged operation. This balance of strength and mobility enables professionals to carry industrial-class performance wherever it is needed—whether in workshops, design studios, or remote retail pop-ups.
Safety Compliance and Laser Classification
Certified as a Class 4 laser device, the xTool F2 adheres to international laser-safety standards. The system supports the use of OD6+ protective goggles and optional enclosure covers to shield users from stray emissions. The laser module incorporates automatic power cutoff when the lid is opened, preventing accidental exposure. These safeguards, together with the low-voltage 24 V power input and redundant thermal sensors, make the F2 safe for both professional and educational environments while maintaining industrial performance levels.
Business and Creative Applications
The xTool F2 bridges the gap between artistic craftsmanship and commercial production. Jewelers can engrave personalized names on rings or pendants within seconds; boutique shops can offer custom wood tags, leather wallets, or metal pens directly in-store. Advertising agencies utilize it for quick prototype signage, while craft studios employ it for decorative home pieces. In every scenario, the combination of portability, high power, and precise imaging enables on-demand customization that attracts customers and increases order value.
Conclusion
The xTool F2 Laser Engraver, distributed officially by 3DRAYAN.COM in the UAE, unites precision optics, intelligent automation, and dual-wavelength power in a truly portable form factor. Its unmatched 6000 mm/s speed, 50 MP camera alignment, and multi-material versatility position it as a benchmark in the compact-laser segment. Whether for industrial labeling, artistic design, or retail personalization, the F2 delivers reliability and performance previously achievable only with stationary systems—setting a new standard for mobile laser engraving worldwide.
