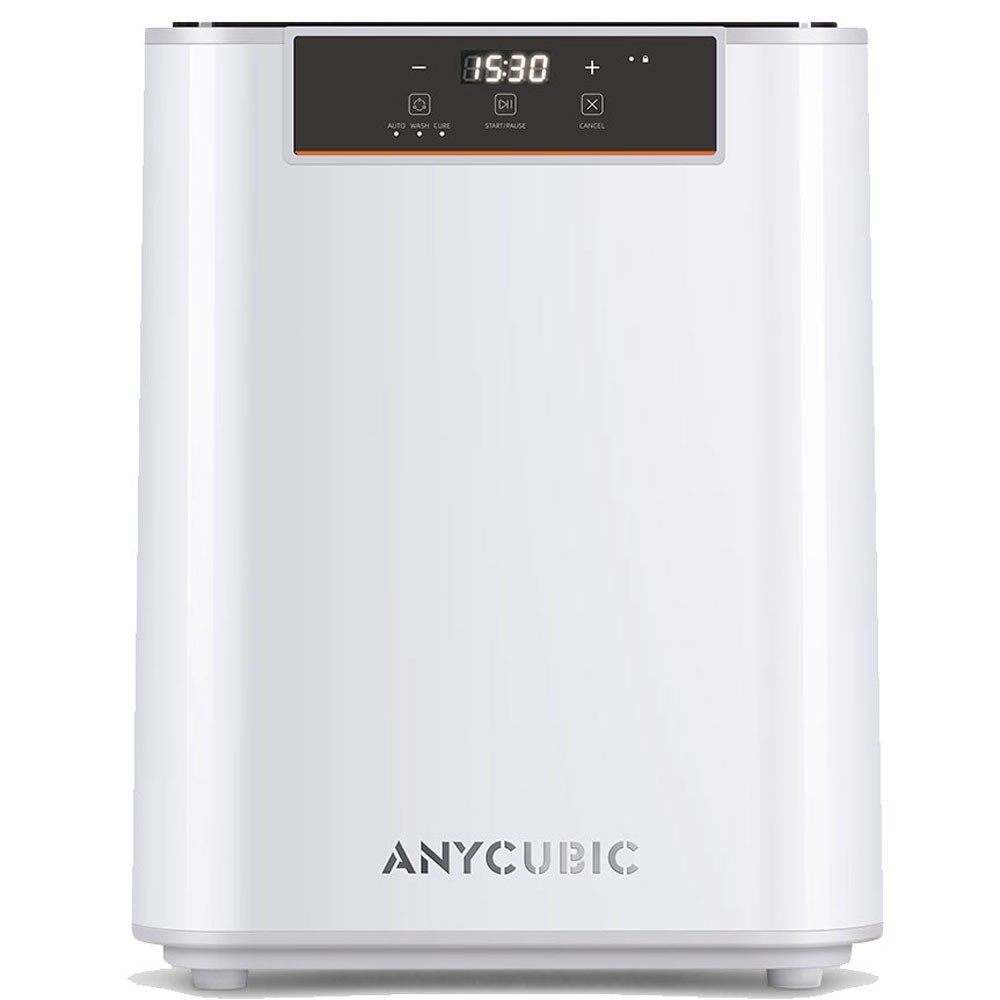

Anycubic Wash & Cure 3 Max

Introduction: Elevating Resin 3D Printing with Advanced Post-Processing

In resin-based 3D printing, success is measured not only by the performance of the printer but also by the effectiveness of the post-processing. The steps that follow printing—namely, washing and curing—are essential in transforming raw prints into smooth, accurate, and durable finished products. The Anycubic Wash & Cure 3 Max introduces a new standard in this critical phase of production, offering automation, precision, and extra-large capacity to meet the needs of both professionals and serious enthusiasts.

With a capacity of 15.1 liters and compatibility with prints up to 305×165×300 mm in size, this all-in-one station combines high-performance cleaning and powerful UV curing in one seamless solution. Whether you are operating a personal workshop, a design studio, or a manufacturing facility, the Anycubic Wash & Cure 3 Max offers robust, scalable, and efficient post-processing capabilities that fit your production requirements.

The Importance of Washing and Curing in Resin 3D Printing

Understanding why post-processing is essential provides context for investing in a professional solution. The moment a model finishes printing on a resin 3D printer, it is not yet ready for handling or functional use. The surface remains coated in uncured, often toxic resin. Without proper washing and curing, the print's final quality, usability, and safety are all compromised.

Complete Resin Removal

Residual resin must be thoroughly removed to prevent surface defects, sticky textures, and skin irritation. Effective washing using isopropyl alcohol (IPA) or detergent solutions ensures that the surface is clean and free from contaminants.

Mechanical and Structural Stability

The printed object is only partially cured when it comes off the build plate. Final UV curing completes the polymerization process, giving the part its intended mechanical properties, such as tensile strength, rigidity, or flexibility, depending on the resin used.

Dimensional Accuracy and Surface Finish

Proper curing ensures that the part maintains its designed dimensions and does not warp or shrink. Additionally, well-cured prints are smoother and more visually appealing, free of uneven curing patterns or soft spots.

Long-Term Durability and Safety

Inadequately cured prints can degrade over time. They may yellow, crack, or lose integrity, especially when exposed to heat or UV light. Proper curing improves chemical stability and makes the part safer to handle and use.

Anycubic Wash & Cure 3 Max – Key Features in Detail

15.1-Liter Ultra-Large Capacity

The standout feature of the Wash & Cure 3 Max is its significant internal volume. With a 15.1-liter tank, the system can accommodate large-format prints or multiple parts in a single session. The internal space measures 305×165×300 mm, making it compatible with most medium-to-large LCD resin 3D printers on the market.

Compared to the Anycubic Wash & Cure 3 Plus, this model offers a 98.55 percent increase in capacity, enabling professional users to scale their post-processing efficiently.

One-Click, Fully Automated Wash and Cure System

With just one button, the system handles both washing and curing in a seamless, automated workflow. There is no need to transfer the model manually between different machines or stages. This reduces handling time and risk of contamination while increasing efficiency.

Customizable Operation Modes

Three primary modes offer full flexibility:

• Automatic Mode: Includes spray cleaning, bottom immersion, and full 360-degree curing.
• Washing Mode: Adjustable washing duration for different levels of cleaning based on print complexity or resin type.
• Curing Mode: Customizable curing time ensures optimal polymerization based on the resin manufacturer’s specifications.

This flexibility allows users to fine-tune the process based on material properties, print size, and desired finish quality.

Dual-Mode Cleaning Technology

Efficient cleaning is achieved through a combination of techniques:

• 360-Degree Spray Cleaning: Ensures thorough coverage for prints with complex geometries.
• Bottom Immersion Cleaning: Targets areas in direct contact with the build platform.
• Optimized Basket Design: Improves detergent flow and supports higher print loads without clogging.

Together, these features reduce the amount of IPA or detergent required, which results in lower running costs and less frequent solution replacement.

Powerful UV Curing with High-Density Illumination

The Wash & Cure 3 Max includes a rotating curing platform and a UV system capable of delivering a maximum power density of 25,000 microwatts per square centimeter. At an irradiation distance of 18 cm, the system ensures even and deep curing across the entire print surface. This feature is particularly valuable for thick or intricate models that require consistent curing throughout.

Intelligent Monitoring and Error Alerts

The device is equipped with a series of intelligent monitoring features that enhance reliability and safety during operation:

• Cover Open Alert (E:20): Prevents accidental UV exposure by disabling the curing process when the lid is open.
• No Liquid Inflow (E:11): Detects if cleaning fluid is not circulating correctly.
• Outlet or Detergent Port Blockage (E:12): Indicates clogged passages that may impede effective cleaning.
• Low Voltage Alert (LLLL): Ensures the machine operates within safe electrical conditions.

These alerts prevent damage to the machine, minimize user error, and maintain consistent post-processing results.

Clean and Functional Industrial Design

The Wash & Cure 3 Max features a minimalist control panel and a transparent flip-top lid that allows users to easily insert or remove parts and visually inspect progress. Despite its large internal capacity, the machine maintains a compact footprint, making it ideal for both home and industrial use.

Technical Specifications

Ideal Use Cases and Industries

The Anycubic Wash & Cure 3 Max is suited for a wide range of industries and professional applications:

• Miniature and Model Making: Ensures clean surfaces and smooth finishes for collectibles and scale models.
• Dental and Medical Fields: Meets hygiene standards with efficient cleaning and precise curing for surgical guides or dental molds.
• Product Prototyping: Speeds up iteration cycles with fast, repeatable post-processing.
• Jewelry Design: Maintains fine details and clean edges for high-precision wax or resin patterns.
• Batch Manufacturing: Handles multiple parts in one cycle, improving throughput and reducing labor costs.

Why Buy from 3DRAYAN.COM?

As the official Anycubic dealer in the United Arab Emirates, 3DRAYAN.COM offers:

• Direct access to genuine Anycubic products
• Warranty coverage and technical support
• Fast shipping across the UAE
• Expert guidance on selecting and using 3D printing equipment
• Local knowledge and trusted customer service

When you choose 3DRAYAN, you are partnering with a company that understands the needs of 3D printing professionals and is committed to providing best-in-class technology backed by reliable support.

Conclusion: The Professional Standard for Resin Post-Processing

The Anycubic Wash & Cure 3 Max is not just a convenience—it is a strategic investment for serious 3D printing operations. Its unmatched volume, smart automation, IPA-saving cleaning, and powerful curing system make it one of the most capable post-processing solutions in the market today.

For anyone working with resin-based 3D printers, upgrading to a machine like the Wash & Cure 3 Max ensures your prints are not only beautiful but also strong, safe, and ready for use.

Now available at 3DRAYAN.COM – Your official source for Anycubic products in the UAE.
