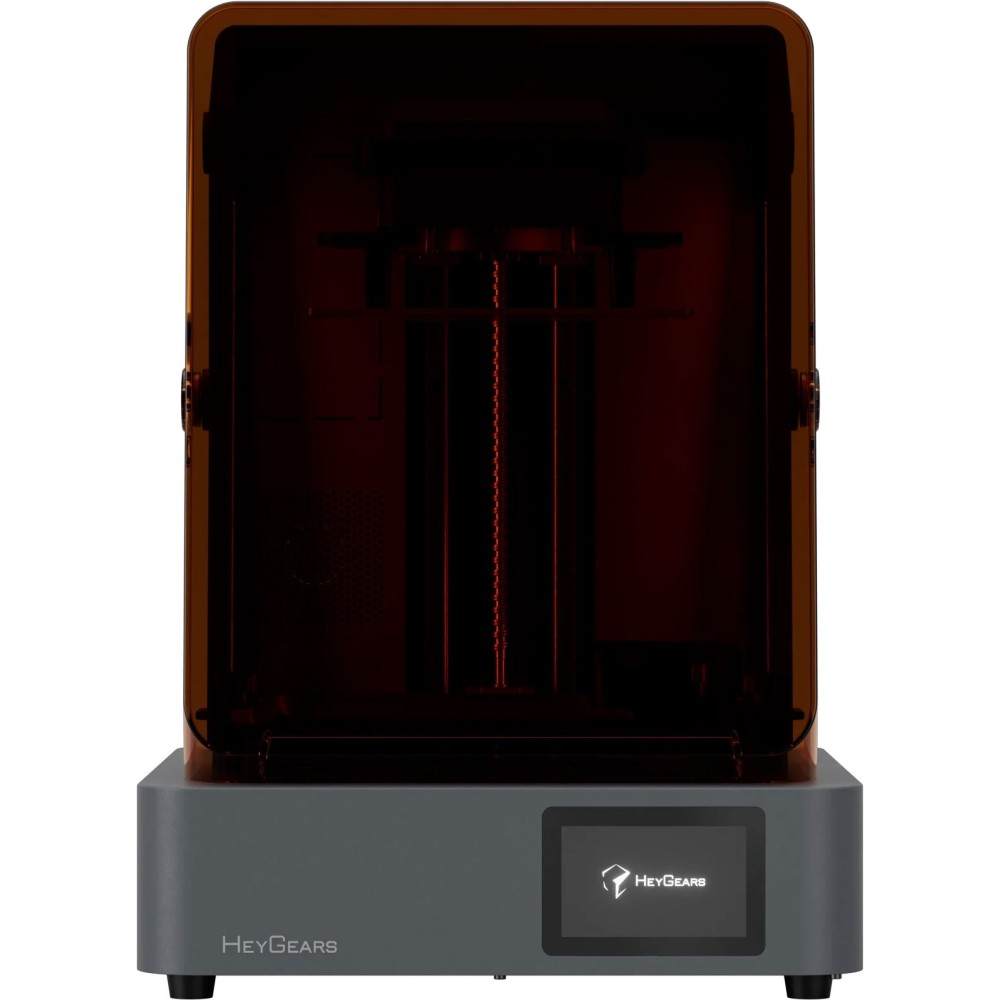

HeyGears Reflex 2 3D Printer
The HeyGears Reflex 2 3D Printer marks a breakthrough in professional resin manufacturing, designed to bring industrial-grade accuracy and production consistency to desktop scale. Engineered by HeyGears and officially distributed in the UAE by 3DRAYAN.com, this advanced printer is the successor to the original Reflex line, now enhanced with a 161 OptiZone Light Engine, a 10.7-inch Amber Screen Pro, and a C5-grade Z-axis module with ±2 µm repeat positioning accuracy. The Reflex 2 achieves ultra-precise results through optical uniformity, mechanical stability, and intelligent temperature control. With its die-cast unibody base and compatibility with high-performance resins, it’s an ideal choice for industries that demand both speed and precision — from dental and medical applications to industrial and engineering production.
161 OptiZone Light Engine – The Heart of Precision
At the core of the HeyGears Reflex 2 lies the 161 OptiZone Light Engine, an innovation that brings next-level control over light exposure. Each of the 161 mini-LEDs operates independently, with its brightness modulated by Pulse Width Modulation (PWM) technology. This enables perfectly uniform illumination across the print area, eliminating dim zones or overexposed edges that often plague standard MSLA printers. The result is crystal-clear surfaces, exceptionally sharp edges, and remarkably consistent layer curing. The Reflex 2’s light engine translates optical accuracy directly into dimensional stability — a crucial factor when producing complex functional components for engineering or medical devices. This feature alone positions the Reflex 2 as one of the most accurate resin 3D printers available in the UAE market today.
Amber Screen Pro – Durability That Lasts 6,000+ Hours
Another defining feature of the HeyGears Reflex 2 is its Amber Screen Pro, a 10.7-inch 6K resolution LCD optimized for uniform light transmission and thermal resistance. With a verified lifespan exceeding 6,000 hours, it guarantees long-term operation without brightness decay. For professional studios and production lines, this translates to fewer replacements and lower operational costs. The screen’s stability also ensures more reliable exposure times, improving the surface finish of every printed model. HeyGears has paired this with a new generation of mask calibration software to deliver consistent light distribution and reduce optical distortion over time, making the Reflex 2 ideal for long-run manufacturing cycles and industrial applications.
AI-Powered 86,000+ Zone Light Calibration
The Reflex 2 incorporates a revolutionary AI-driven light calibration system with over 86,020 zones of precision mapping. Through its proprietary MASK algorithm, the printer analyzes each individual pixel region and automatically compensates for light intensity fluctuations. This calibration process achieves ≥ 94% light uniformity and a print accuracy of ≤ 0.05 mm. By eliminating the minor inconsistencies that can cause warping or layer mismatch, HeyGears has ensured that every print meets industrial tolerance standards. Whether you are printing a precision dental arch or a functional prototype for aerospace, the Reflex 2 delivers repeatable, laboratory-grade results without requiring manual recalibration after each run.
Die-Cast Unibody Base – Built for Rigidity and Longevity
A strong foundation determines print quality, and the Reflex 2 takes this literally with its die-cast unibody base. This single-piece construction eliminates mechanical play and assembly tolerances that can develop over time. Unlike multi-part frames, the unibody design prevents vibration, improves Z-axis stability, and enhances repeat positioning accuracy to micron levels. By removing mechanical stress points, HeyGears achieves a machine that remains accurate even after thousands of print cycles. For UAE-based manufacturers seeking industrial reliability in a desktop form factor, this engineering approach provides both stability and durability under continuous operation.
Dynamic Motion Algorithm 3.0 – Speed Meets Stability
Speed is useless without stability. The Reflex 2’s Dynamic Motion Algorithm 3.0 ensures fast yet controlled movement through real-time force feedback at 80 Hz. Equipped with high-precision spindles and embedded force sensors, the printer automatically adjusts its movement speed to prevent layer misalignment or board detachment. This smart feedback system minimizes downtime and enhances overall throughput. In industrial settings where multiple jobs run daily, such dynamic compensation translates to higher efficiency and lower maintenance overhead — a critical factor for UAE businesses pursuing rapid production cycles.
Intelligent Temperature Control System
The HeyGears Reflex 2 integrates an optional Intelligent Temperature Control System with a heated scraper for optimal resin management. This system warms the resin evenly to its ideal operating temperature, enhancing flow and reducing viscosity-related defects. The Reflex 2 heats resin from 10 °C to 22 °C in just six minutes — 68% faster than previous generations. Maintaining a precise ±1 °C deviation, the printer ensures stable polymerization throughout the entire print job. This feature is particularly valuable for high-viscosity engineering resins, which require consistent thermal conditions for accurate curing and maximum strength.
Powerful Thermal Dissipation and Ventilation System
Effective heat management extends the lifespan of critical components like the Amber Pro screen and light engine. The Reflex 2 uses a sophisticated ventilation architecture that maintains a steady internal temperature between 31.2 °C and 35 °C. This not only prevents overheating but also reduces light-source degradation. According to HeyGears lab tests conducted with UltraPrint-Production PAP10 resin at 25 °C, this thermal system significantly extends printer life and ensures reliable continuous operation. For UAE workshops operating in warm environments, such a system is vital to maintaining performance consistency year-round.
Floating Build Platform and Auto Leveling
Precision in layer adhesion depends on perfect leveling. The Reflex 2 solves this with a floating build platform that achieves automatic leveling with a deviation of only 0.15°. This system compensates for up to 240 µm surface variation automatically, ensuring that the first layer bonds perfectly to the build surface. Users can focus on production rather than manual adjustments, making it an excellent option for continuous batch printing. This level of automation shortens setup time and minimizes operator error — ideal for 3DRAYAN.com’s UAE clients who require reliable, repetitive printing for commercial projects.
High-Sensitivity Residue Detection
Reliability extends beyond mechanical precision; the Reflex 2 features residue detection sensors with 0.01 N sensitivity. These sensors can identify resin residue as thin as 0.15 mm and automatically halt printing to prevent damage or print failure. This level of protection ensures safe, autonomous operation even during extended unattended prints. The result is a smarter printer that actively monitors its own status — minimizing waste, protecting hardware, and ensuring consistent production output for industrial users across Dubai and the wider UAE.
Wider Resin Compatibility for Advanced Applications
HeyGears has expanded the material capability of the Reflex 2, making it compatible with a wide range of high-performance resins including engineering, dental and prototype materials. Thanks to its stable light engine, precision hardware, and intelligent temperature control, users can work with formulations that require accurate exposure or high heat resistance. This unlocks a new level of versatility for professional users who need to balance strength, clarity, and thermal stability. 3DRAYAN.com supplies the Reflex 2 along with HeyGears certified resins to ensure optimal results and material compatibility in production environments.
Modular Design for Effortless Maintenance
Ease of maintenance is crucial for long-term productivity. The Reflex 2 adopts a modular design, allowing quick replacement of key components such as the screen, light engine, and Z-axis assembly without complex recalibration. This reduces downtime for industrial workshops and improves machine longevity. Combined with remote monitoring and update capabilities through HeyGears software, this design ensures the Reflex 2 remains a future-proof solution for small-scale manufacturing and professional 3D labs across the UAE.
Compact Form Factor with Industrial Performance
Despite its robust hardware, the Reflex 2 maintains a compact footprint of 430 × 445 × 605 mm and a weight of just 25.5 kg. It offers a build volume of 230 × 144 × 230 mm (9.1 × 5.7 × 9.1 in), allowing users to produce medium-sized functional parts without sacrificing desk space. Connectivity options include USB, Wi-Fi, and LAN ports for network printing, as well as interfaces for HeyGears’ GreenPrint Purification Module and Pulsing Release Module 2. Such integration ensures that the Reflex 2 fits seamlessly into smart factory environments and digital production ecosystems throughout the UAE.
Complete Production Empowered
HeyGears positions the Reflex 2 as a complete production system rather than a single device. It unifies precision optics, mechanical stability, and intelligent temperature control into a platform ready for mass production. Users can scale their printing capacity by operating multiple Reflex 2 units in parallel, achieving high output without losing accuracy. With its network connectivity and HeyGears software suite, the Reflex 2 empowers factories and labs in Dubai to automate workflows and track performance across devices in real time.
Technical Specifications Overview
- Printing Technology: LCD (MSLA)
- Screen: 10.7-inch 6K Amber Screen Pro
- Optical Wavelength: 385 + nm
- Light Zones: 161
- Z-axis Accuracy: C5 Grade, ± 2 µm
- Build Volume: 230 × 144 × 230 mm
- XY Native Pixel: 40 µm
- Accuracy: ± 20 µm
- Layer Thickness: 20–250 µm
- Rated Power: 350 W
- Voltage: 100–240 V, 50/60 Hz
- Weight: 25.5 kg
- Size: 430 × 445 × 605 mm
- Connectivity: USB, Wi-Fi, LAN
Why Choose HeyGears Reflex 2 from 3DRAYAN.com
As the official HeyGears dealer in UAE, 3DRAYAN.com offers exclusive sales, technical support, and after-sales services for the Reflex 2 series. Purchasing from an authorized partner ensures genuine hardware, factory warranty, and expert training on installation and operation. With a dedicated team serving customers across Dubai and the Middle East, 3DRAYAN.com provides both product expertise and local service for HeyGears 3D printers, resins, and accessories — making it the most trusted destination for professional additive manufacturing solutions in the region.
