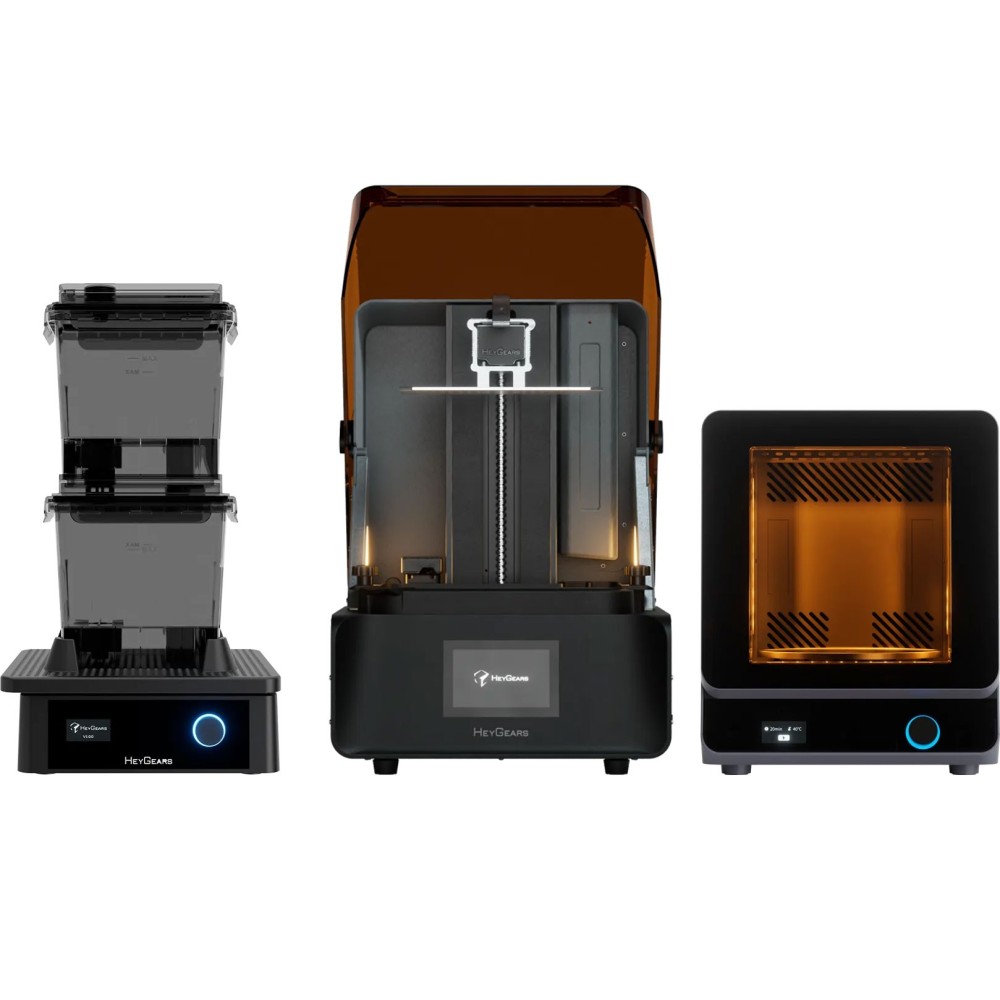

HeyGears UltraCraft Reflex RS Combo: The Future of Reliable and Accurate 3D Printing

The HeyGears UltraCraft Reflex RS Combo is an advanced, high-precision 3D printing platform designed for professionals and businesses seeking accuracy, reliability, and speed. Built with cutting-edge hardware and intelligent automation, it redefines the resin 3D printing experience by offering seamless integration of printing, calibration, motion control, and process optimization. Whether you are working on prototypes, dental applications, engineering parts, or intricate models, the Reflex RS Combo ensures unmatched precision and a streamlined workflow.

Unmatched Z-Axis Precision with C5 Grade Module

At the heart of the UltraCraft Reflex RS Combo lies its C5-grade Z-axis module, designed for maximum reliability and repeatability. With a positioning accuracy of ±2 µm, even over 10,000 continuous cycles under a 50 kg load, the printer delivers impeccable layer registration. This level of precision minimizes dimensional errors, making it ideal for applications requiring ultra-detailed surfaces and tight tolerances.

Full-Field Precision Calibration for Consistent Results

Achieving flawless 3D prints relies on controlling light intensity across the entire LCD screen. The Reflex RS partitions the screen into 60 calibrated zones, ensuring ±3% variation in light intensity. This advanced calibration technology guarantees a printing tolerance of ≤0.05 mm, providing unmatched consistency even after replacing the LCD screen. By using NFC-based automatic screen calibration, users enjoy uninterrupted accuracy without manual adjustments.

Adaptive Z-Axis Compensation for Complex Geometries

Different resins, geometries, and model types demand unique printing strategies. The Reflex RS Combo offers adaptive Z-axis compensation for up to 180 unique combinations of angles, hole sizes, and edge profiles. Whether printing delicate dental molds or rugged engineering prototypes, the printer automatically adjusts its parameters to maintain optimal results without requiring manual intervention.

Faster Printing with Dynamic Motion Algorithm 3.0

Speed without compromising quality is a hallmark of the UltraCraft Reflex RS Combo. Thanks to Dynamic Motion Algorithm 3.0, the RS achieves up to a 33% increase in printing speed compared to conventional motion control systems. By analyzing each layer’s complexity in real time, the algorithm intelligently selects from 18 optimized motion control profiles. Combined with seven-segment per-layer control and real-time force sensing at 80 readings per second, it reduces redundant motion and prevents printing failures.

High-Speed Injection-Molded Precision

Pairing 8K LCD resolution with HeyGears’ proprietary process optimization enables the Reflex RS to achieve injection-molded-like accuracy with a remarkable two-hour speed advantage for demanding prints. Complex models with intricate internal structures are handled effortlessly, delivering smooth surfaces and sharp edges in record time.

Force Value Monitoring and Residue Detection

One of the standout features of the RS Combo is its Force Value Monitoring System. Equipped with 0.1 N sensitivity force sensors, the printer can detect resin residues as small as 0.2 mm. In case of irregularities or potential failures, the system automatically stops the print to prevent material waste and save time, giving users complete confidence during unattended printing sessions.

Automated Pre-Processing and One-Click Slicing

The Reflex RS Combo takes efficiency to the next level with complete automatic pre-processing. Users can prepare their models for printing in just one minute using the one-click slicing function, eliminating the need for complex parameter tuning. This streamlined workflow significantly reduces preparation time while ensuring optimal settings for each material and model type.

Enhanced Automated Printing Assistance

To further improve usability, HeyGears equips the Reflex RS Combo with intelligent automation features, including:

• Floating Screen Auto-Leveling
  A precision floating mechanism achieves ±0.15° leveling accuracy, compensating for gaps of up to 240 µm and ensuring perfect first-layer adhesion.
• Automatic Resin Heating (optional)
  For resins requiring temperature control, the RS Heated & Pulsing Release Resin Tank elevates resin temperature from 10 °C to 22 °C in just 20 minutes and maintains it consistently throughout the printing process. This leads to optimal viscosity and superior print quality, even in cold environments.

8K Resolution and Advanced LCD Technology

The Reflex RS Combo integrates a 10.3-inch 8K monochrome LCD screen, delivering an XY native pixel size of 29.7 µm. Combined with an ±15 µm dimensional accuracy and 30–100 µm layer thickness range, it captures ultra-fine details and produces exceptionally smooth surfaces. This makes it perfect for industries requiring precision, such as dental, jewelry, engineering, and prototyping.

Comprehensive Technical Specifications

Why Choose HeyGears UltraCraft Reflex RS Combo

The Reflex RS Combo isn’t just another resin printer — it’s an intelligent production platform. From real-time calibration to AI-assisted motion control and adaptive compensation systems, every aspect of the RS is optimized to deliver consistent, high-quality prints. Whether you’re a professional in dental technology, jewelry design, product prototyping, or engineering, the Reflex RS Combo offers an unparalleled combination of speed, precision, and reliability.

Conclusion

The HeyGears UltraCraft Reflex RS Combo redefines what’s possible in resin-based 3D printing. Its innovative automation, ultra-high precision, and integrated optimization algorithms make it the ideal choice for professionals and businesses that demand perfection. With HeyGears' robust engineering and intelligent process control, the RS Combo enables you to achieve production-grade results while minimizing errors, maximizing efficiency, and saving time.
